Lab impressions
-
Picture: D. Markina
Broadband supercontinuum laser and tunable bandpass filter (NKT Photonics) -
Advanced spectrometers integrated with high-sensitivity CCD detectors (Teledyne Princeton Instruments) -
Picture: D. Markina

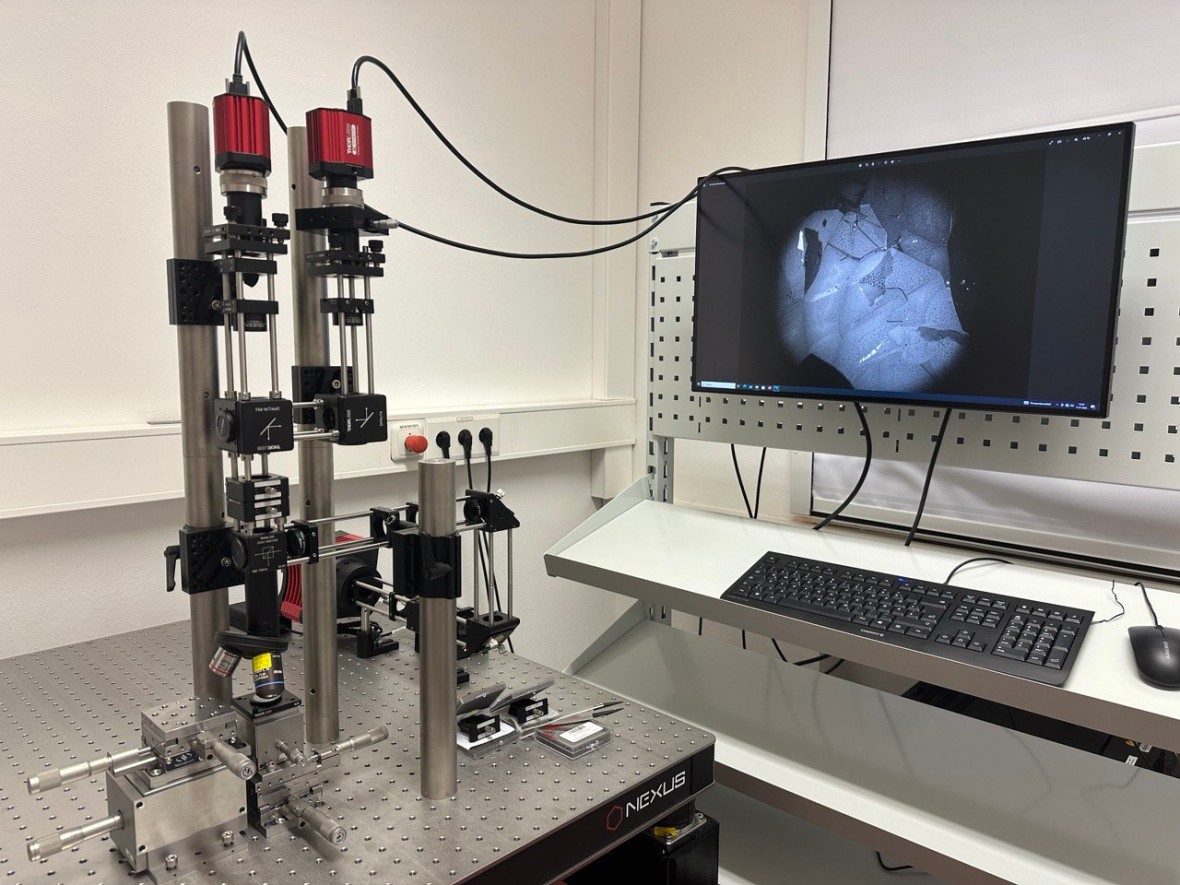

Photoluminescence imaging microscope at ambient conditions -
Left: Room temperature spectroscopy setup Right: Fiber-coupled laser modules -

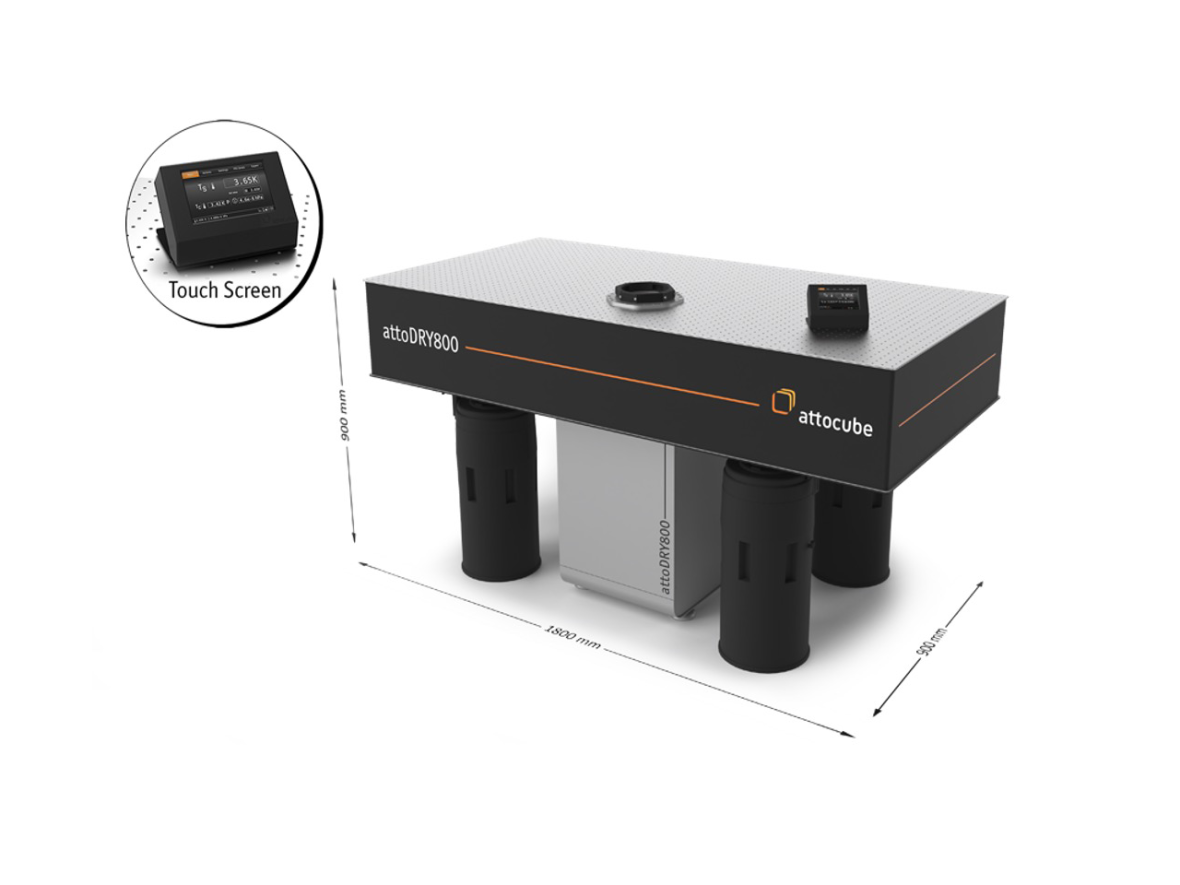

attoDRY 800, the closed-cycle cryostat with motorized positioners integrated into optical table (attocube systems) -

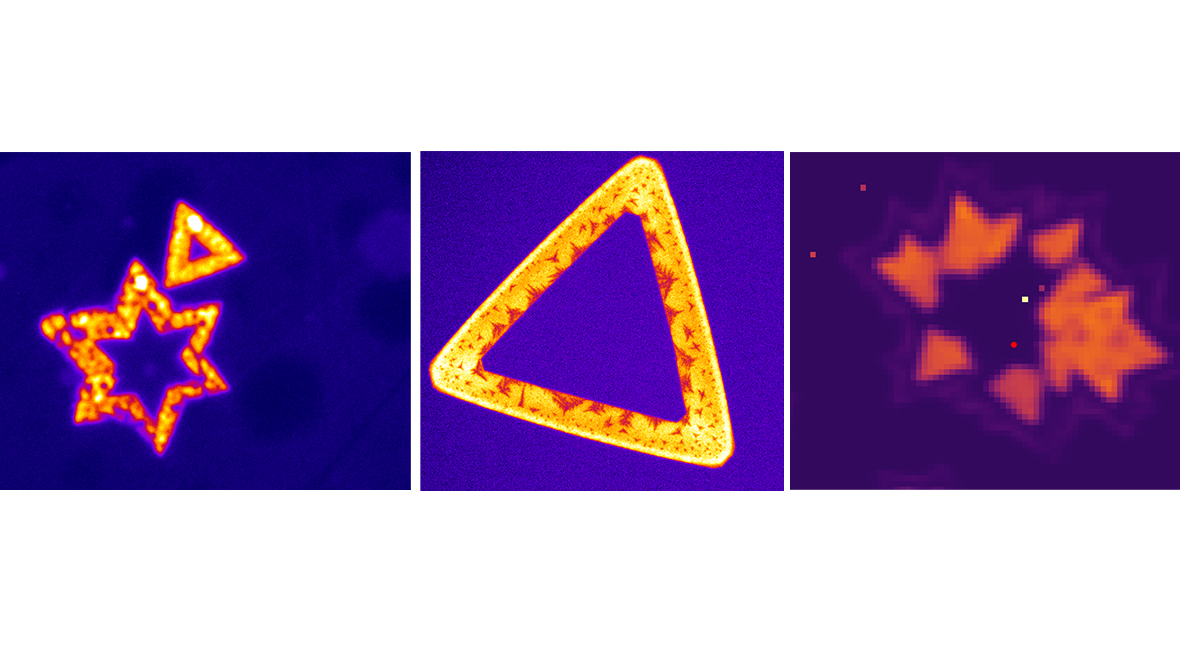

Photoluminescence imaging of lateral heterostructures
- Go to picture 1
- Go to picture 2
- Go to picture 3
- Go to picture 4
- Go to picture 5
- Go to picture 6
To conduct a full range of complex optical studies we have the broadband supercontinuum laser (FIANIUM FIU-15, NKT Photonics) coupled with tunable bandpass filters with different spectral width options (SuperK Varia and LLTF Contrast, NKT Photonics) allowing it to operate as a white light source as well as a narrow line source. The high resolution of the collected signal is provided by the spectrometer (HRS-500 or SCT320, Teledyne Prinston Instruments) coupled with a highly sensitive cooled CCD camera (PyLoN 1340x100BRX & BLAZE 400HRX, Teledyne Prinston Instruments). The samples are mounted in a closed-cycle cryostat (attoDRY800 or attoDRY1000, attocube) for temperature-dependent spectroscopic measurements. For the PL imaging, we use the home-built microscope system with white light LED (SOLIS-1D, Thorlabs) and CMOS camera (CS126CU, Thorlabs).
Related publications:
“Guide to optical spectroscopy of layered semiconductors”
S Shree, I Paradisanos, X Marie, C Robert, B Urbaszek
Nature Reviews Physics, 3, 39–54 (2021)
“The physical origins of Extreme cross-polarization extinction in confocal microscopy”
Meryem Benelajla, Elena Kammann, Bernhard Urbaszek, Khaled Karrai
Physical Review X 11, 021007 (2021)
